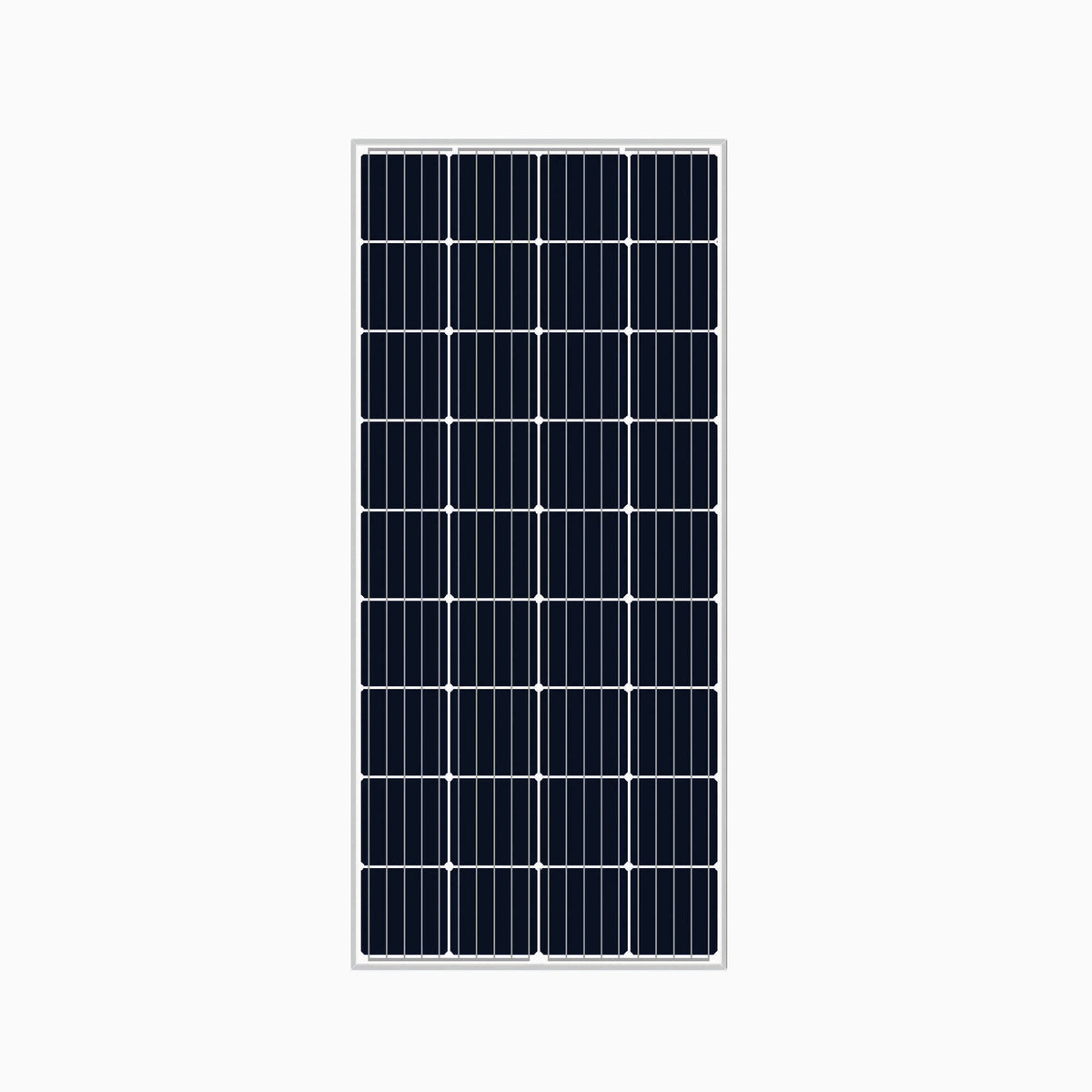

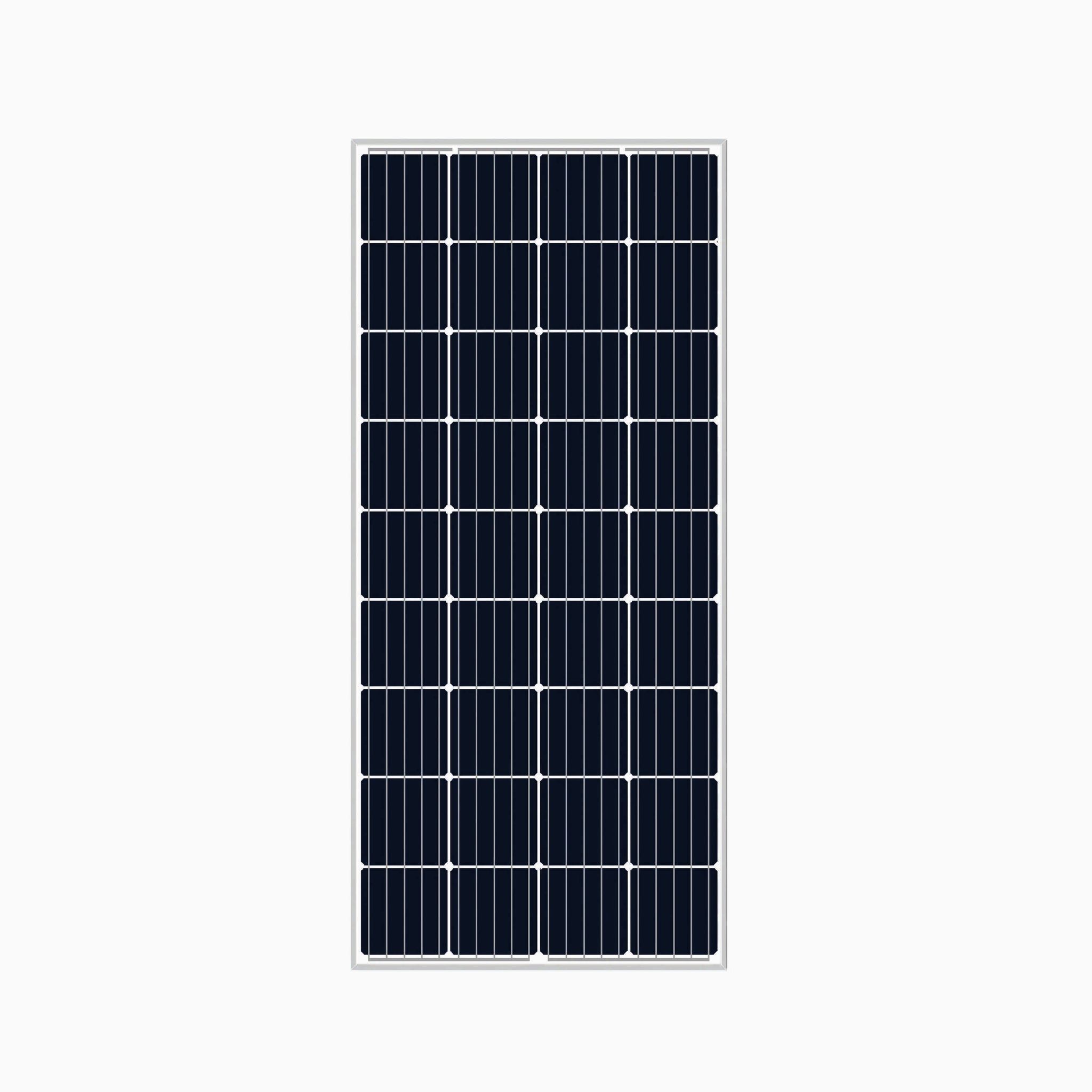

200 Watt Solar Panel

Free Shipping
FEATURES YOU’LL LOVE

High Conversion Efficiency Mono-crystalline Silicon

Our mid-sized panel. Warrantied for 25 years. Cable and MC4 connectors are included. Make sure to buy your Z-bracket mounting hardware!

  • Low light features enhance performance under suboptimal lighting conditions.
  • High module conversion efficiency 20.2%
  • Designed for Outdoor Use. IP67 junction box, high water proof level.
  • Design to last up to 25 Years.
  • These High-Performance Cells are encapsulated in EVA (ethylene-vinyl-acetate) and then placed between high-transparency, low-iron tempered glass and a durable TPT (tedlar-polyester-tedlar) backing sheet.
  • Mono perc calf cut technology, better energy yield.
  • The panels are framed using heavy-duty anodized aluminum frames providing exceptional panel rigidity.
specs

GENERAL SPECS

Maximum power (Pmax) 200W
Voltage at Pmax (Vmp) 23.2V
Current at Pmax (Imp) 11.05A
Open-circuit voltage (Voc) 19.2V
Short-circuit current (Isc) 10.42A
Temperature coefficient of Voc -0.275% / °C
Temperature coefficient of Isc +0.045%/ °C
Temperature coefficient of Pmax -0.350%/ °C
Maximum System Voltage 600V DC
Operating temperature -40°C to 85°C
Power tolerance 0,+4.99W
Standard Test Condition Irradiance 1kW/sqm, Temperature 25°C, AM=1.5
Panel Dimension 58.3” x 26.4” x 1.4”
Shipping Weight 25.4 lbs (11.5 kg)
in the box
warranty & SHIPPING
FAQS

High Conversion Efficiency Mono-crystalline Silicon

Our mid-sized panel. Warrantied for 25 years. Cable and MC4 connectors are included. Make sure to buy your Z-bracket mounting hardware!

  • Low light features enhance performance under suboptimal lighting conditions.
  • High module conversion efficiency...

Overview

  • 200 Watt Solar Panel x 1 $165.00
  • Total $165.00
30-day any-reason Returns

Optional Add-ons

Z-Brackets

Z-Brackets

$9.99
MC4 PV Cable

One Pair (Black & Red) | 20 ft. MC4 PV Cable | 2 End Connector

If you need to run more than 40ft of PV cable, please contact us directly so we can cut a custom length

$29.99

200 Watt

Solar Panel
  • 30-day any-reason Returns
  • 5-year Warranty

Our products are trusted by...

GENERAL SPECS

Maximum power (Pmax) 200W
Voltage at Pmax (Vmp) 23.2V
Current at Pmax (Imp) 11.05A
Open-circuit voltage (Voc) 19.2V
Short-circuit current (Isc) 10.42A
Temperature coefficient of Voc -0.275% / °C
Temperature coefficient of Isc +0.045%/ °C
Temperature coefficient of Pmax -0.350%/ °C
Maximum System Voltage 600V DC
Operating temperature -40°C to 85°C
Power tolerance 0,+4.99W
Standard Test Condition Irradiance 1kW/sqm, Temperature 25°C, AM=1.5
Panel Dimension 58.3” x 26.4” x 1.4”
Shipping Weight 25.4 lbs (11.5 kg)
